CUSTOM ROTARY & PUSH BROACHES

Rayco manufactures standard and custom rotary (wobble) and push broaches on 8 mm (.315") and .500" shanks. Our broaches are available for a wide range of custom forms and demanding machining applications.

8 mm shank tools are vented except sizes .090" and smaller. Vent holes for .090" and smaller sizes are available upon request.

• Standard form tolerance: ±.0002"
• Tighter form tolerances available upon request
• Shank tolerance: -.0003"
• Available in rotary/wobble and push styles
• Custom sizes available

HEX BROACHES & MATERIAL
Assorted Rayco custom rotary and push broaches in 8 mm and .500-inch shanks

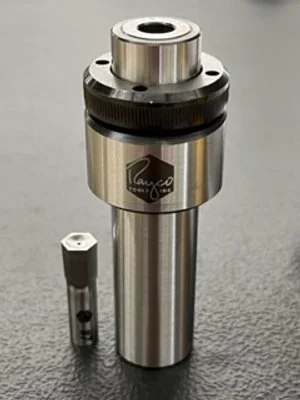

ROTARY & PUSH BROACH HOLDERS

Rayco supplies broach holders for rotary and push broaching applications. Push broach holders are sourced from Global CNC and iSwiss, and Rayco also offers a non-adjustable rotary broach holder. Holders are available in multiple shank sizes, with custom overall length (OAL) options available for your application.



CUSTOM GO/NO-GO hex form GAUGES

Rayco manufactures custom GO/NO-GO plug and paddle gauges for hex and square screw socket forms. Gauges are manufactured to your specifications and include handles and NIST-traceable certification. Available in Rayco #7 high-speed steel

Rayco custom GO/NO-GO hex form plug gauge


REQUEST PRICING, DELIVERY & APPLICATION SUPPORT

REQUEST A QUOTE
